IAEC-4000
Excitation System
A fully digital microcomputer-based excitation system for 10 MW–600 MW generator units, designed for reliable voltage regulation, modular configuration, and flexible cooling options in hydropower and thermal power plants.
Overview

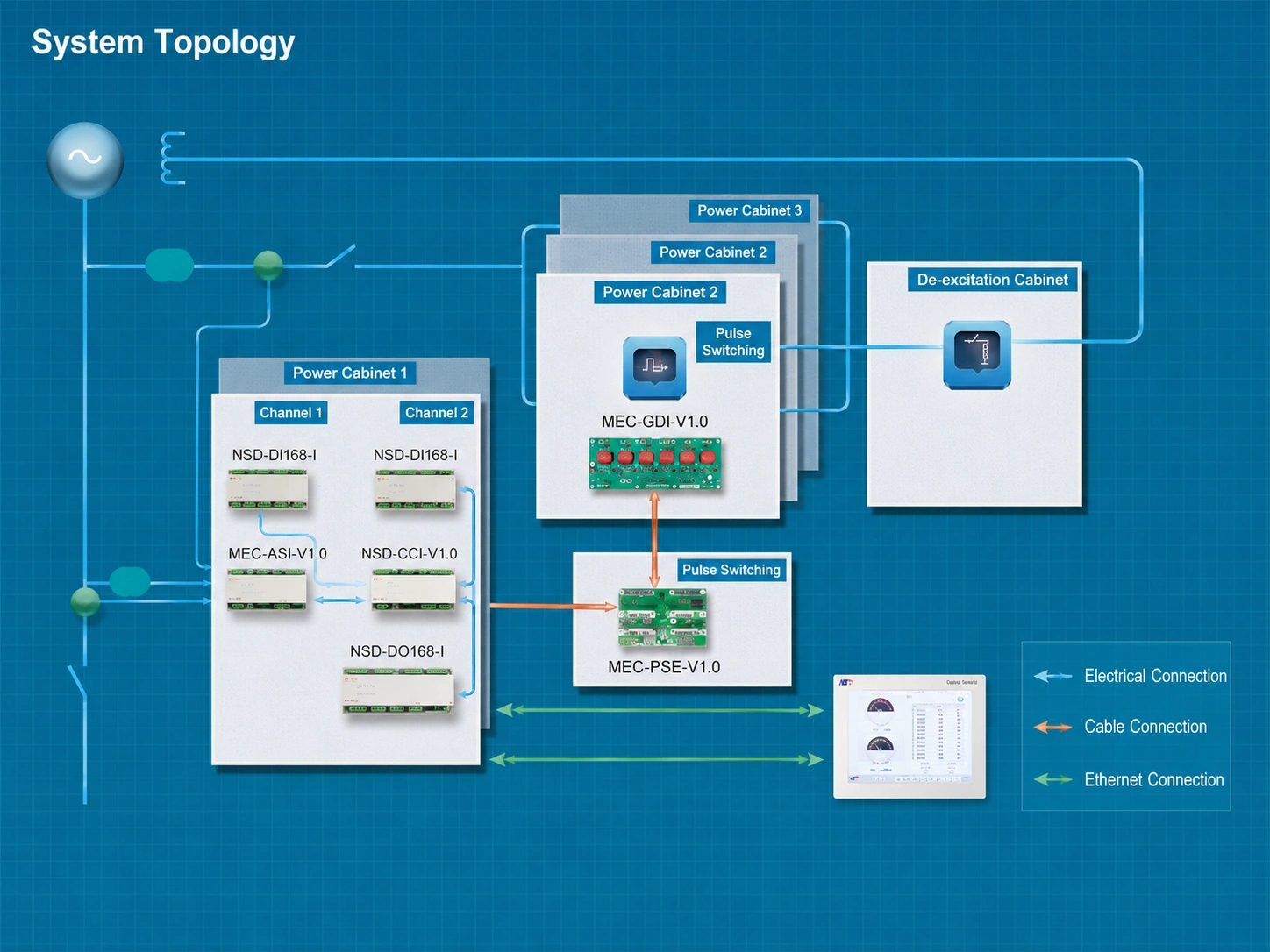

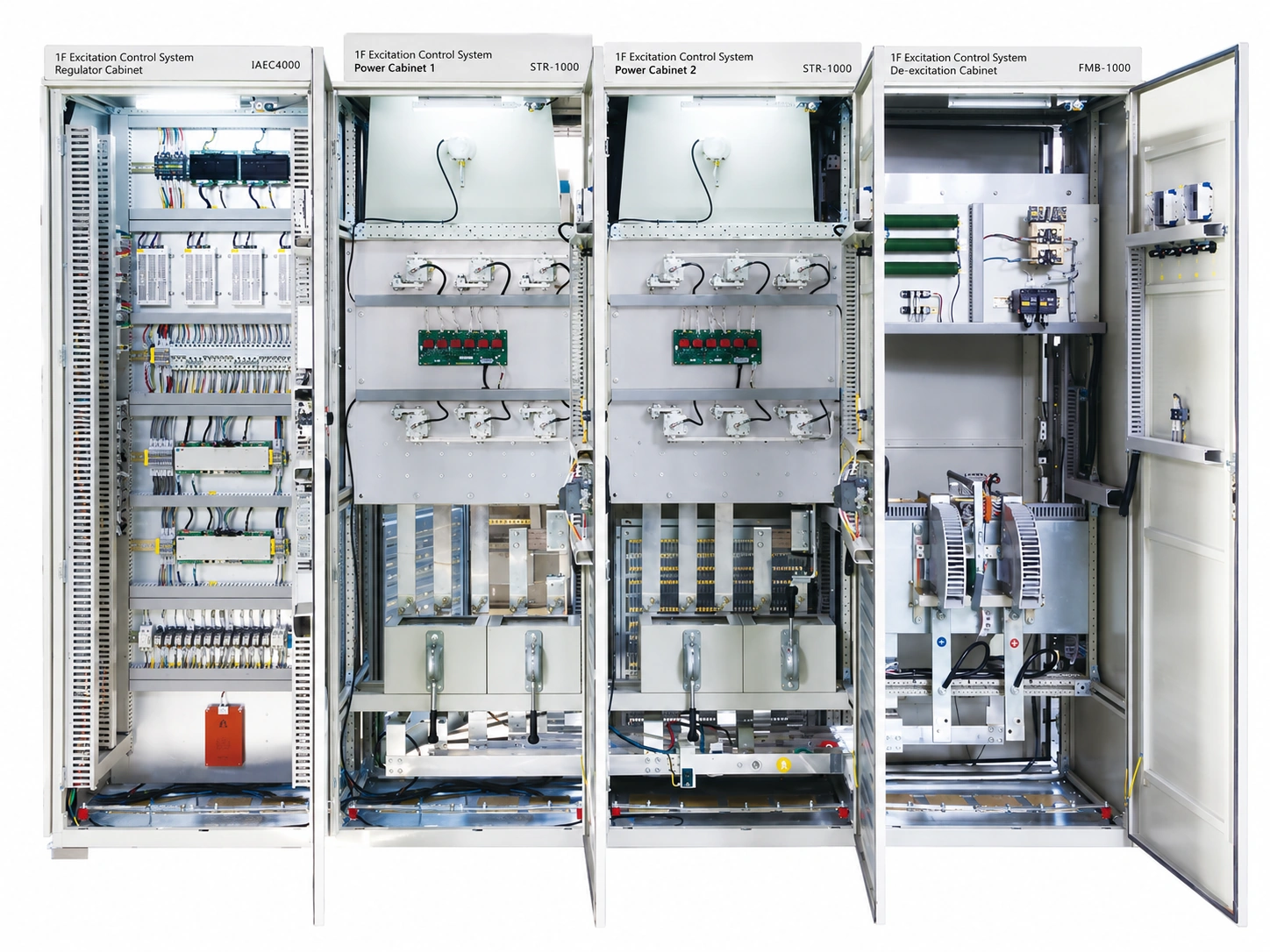

The IAEC-4000 is a fully digital microcomputer-based excitation system developed by NSD Electric for 10 MW–600 MW generator units. With separate regulation, power, and de-excitation cabinets, it adopts a standardized modular design and supports flexible heat-pipe or forced-air cooling configurations for medium and large hydropower and thermal power plants.
Features
1. 32-bit multi-core high-speed processor up to 600 MHz
2. 15-inch industrial panel PC with Chinese/English interface
3. Control modules mounted on 35 mm standard DIN rails, offering strong shock resistance, vibration resistance, and heat dissipation
4. IEC 61131-3 compliant graphical programming supporting FBD, LD, IL, ST, SFC, and C language
5. Strong anti-interference capability, software fault tolerance, and self-diagnosis functions
6. Supports multiple fieldbus protocols with built-in IEC 61850 communication protocol
7. Optional wired or wireless remote real-time diagnosis and maintenance
Key Configuration
1. Dual-channel controller with Automatic Voltage Regulation, AVR, and Manual Current Regulation, MCR
2. Optional PSS-2B / PSS-4B Power System Stabilizer
3. Flexible heat-pipe cooled or forced-air cooled power cabinets
4. Supports configuration of up to 6 power cabinets
