RES-2000
Speed Signal Device
Reliable speed and frequency monitoring device for hydro-generator units, supporting automatic operation and protection systems.
Product Overview
The RES-2000 Speed Signal Device is an essential component of single-unit automation for hydro-generator units and plays a key role in automatic operation and protection systems.
Designed specifically for hydropower plants, the device uses an industrial-grade microcontroller as its core control unit. It is a highly reliable intelligent device for measuring and monitoring generator speed and frequency. The frequency measurement signals are taken from the generator terminal voltage transformer and the speed measuring gear disc.
Technical Specifications
Operating Temperature: -25 to +65°C
Relative Humidity: ≤95%, non-condensing
Power Supply: AC/DC 220V (50/60Hz), dual input
Power Consumption: ≤30 W
Performance Specifications

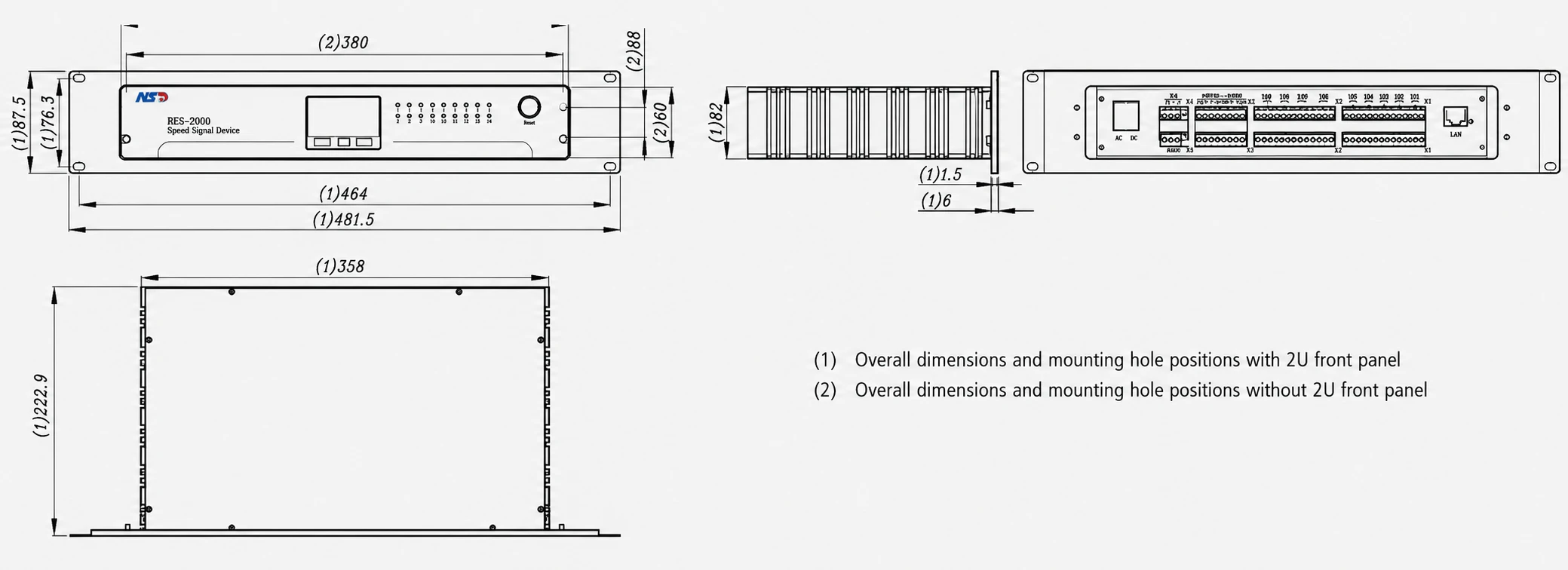

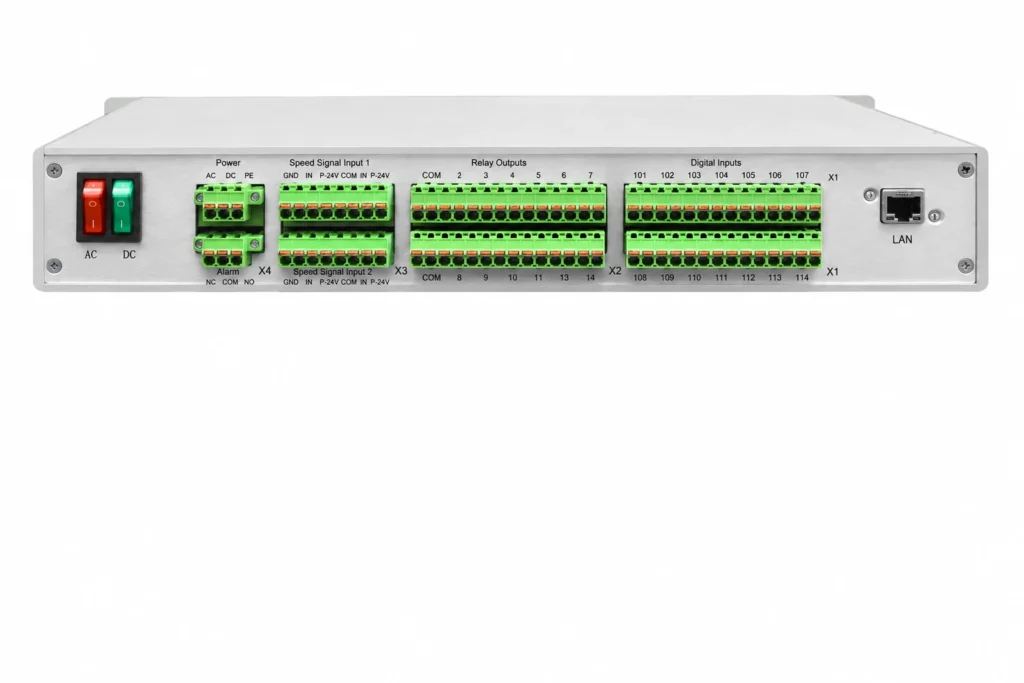

Power Supply: Compatible with AC/DC input, adaptable to various supply conditions. Display: LCD touch screen shows output frequency, input frequencies, speed percentage, channel fault codes, action contact characteristics, operation records, and maximum speed. Data Logging & Communication: Event logging with fault time and speed; RS485 remote communication of frequency and digital status; PC connection via rear network port for parameter configuration. Frequency Inputs & Analog Output: 1 PT frequency input (from generator voltage transformer), 2 gear-disc frequency inputs; 1 analog voltage or current output for remote monitoring. Alarms & Indicators: Peristaltic alarm, zero-speed alarm, customizable limit alarm, self-test alarm, frequency loop fault alarm; 17 LEDs indicate power, device status, channel status, and alarms. Installation & Self-Test: Device supports panel cut-out or standard 19” rack mounting; built-in fixed-value and hardware self-test functions.
