Self-Centering
Main Control Valve
Large-flow dual-channel main control valve with automatic neutral return and manual override for precise hydro-generator control.
Product Overview

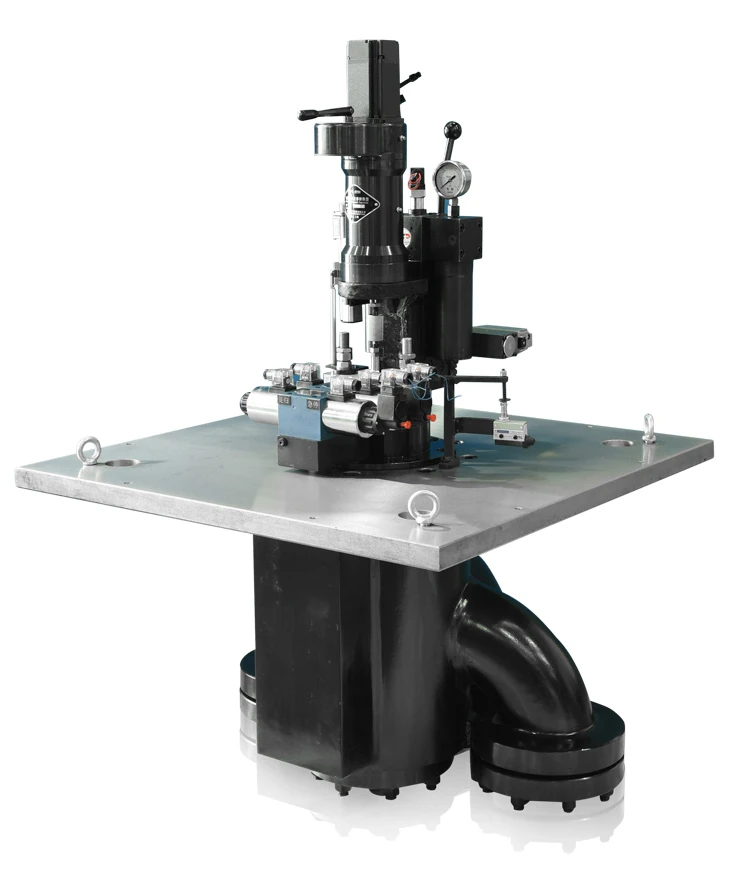

This solution adopts an independently designed and manufactured large-flow 200 mm compound main pressure distribution valve with an independent dual-channel control structure.
In automatic mode, the governor adjusts the oil distribution of the main pressure distribution valve through a proportional valve or servo/stepper motor, enabling precise servomotor movement. In case of power loss or manual switching, the main valve automatically returns to the neutral position to maintain the current operating condition. The mechanical manual operating system can then be used to control the main valve and main servomotor.
Key Highlights
1. Proportional servo valve + servo/stepper motor control
2. Dual-channel redundant electro-hydraulic conversion
3. Displacement/flow compound control main pressure distribution valve
4. Excellent dynamic performance and long service life
5. Pure mechanical manual operating mechanism for daily operation
6. Leakage-free design for reduced maintenance
7. Polymer composite filter material to ensure oil cleanliness
8. Filter replacement allowed during equipment operation
9. Modular structure for easy installation and maintenance

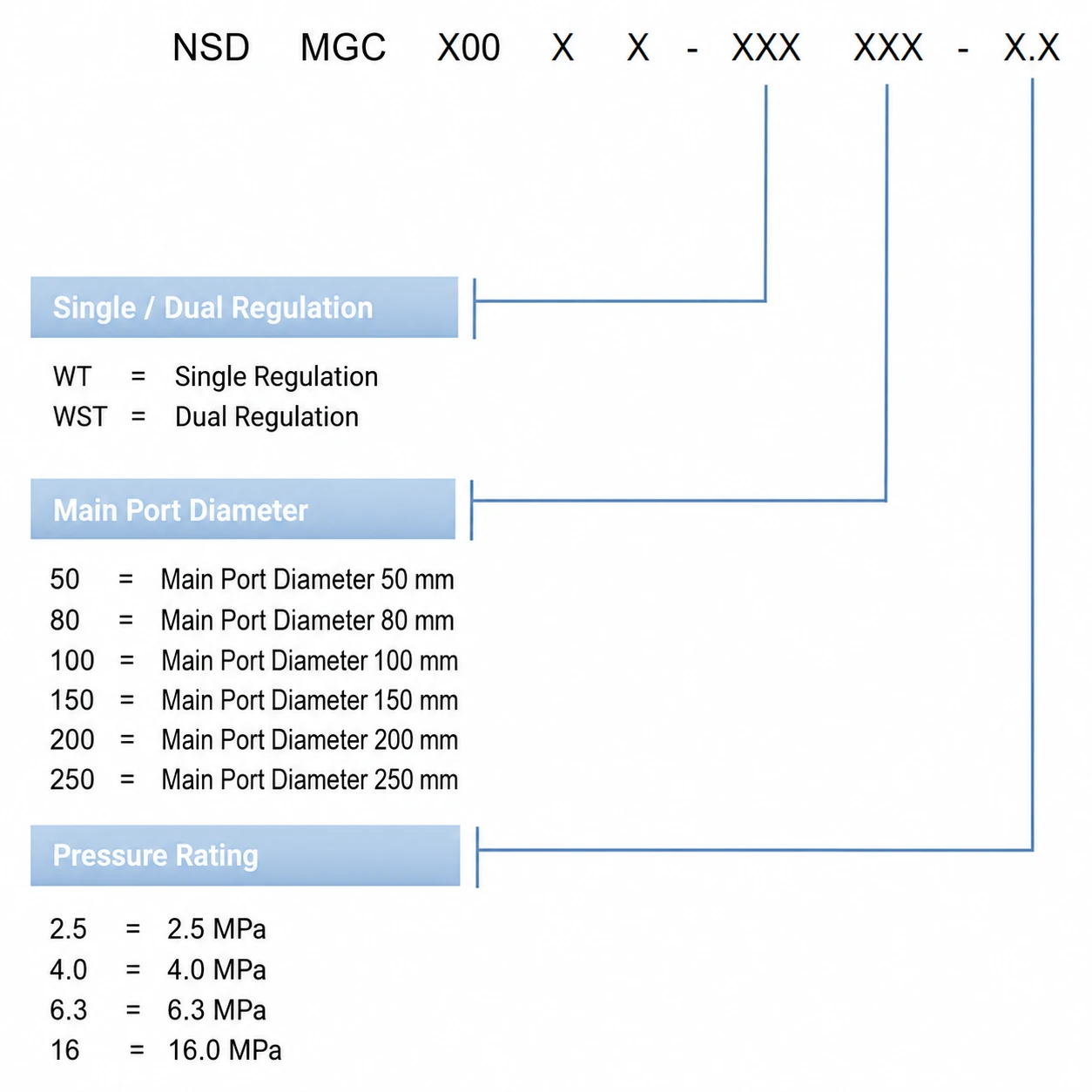

Selection Table
